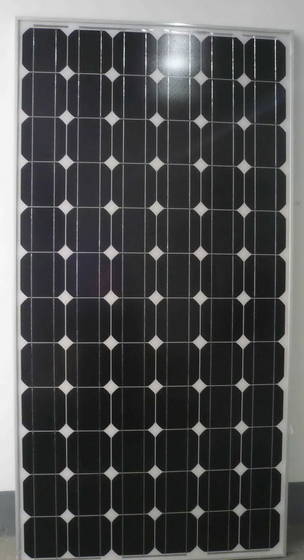

Solar Photovoltaic Module, Cell Panel
|
 Click to enlarge image
|
|
|
Amerisolar? photovoltaic modules are designed for large electrical power requirements. With a 25 year warranty, AS-5M offers high-powered, reliable performance for solar projects, both on- and off-grid.
Solar Cell: High efficiency solar cells ensure high performance of solar module and create maximum power output.
Low iron tempered glass: Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
Aluminum frame: Without screw, corner connection. 10 holes on the frame can be installed easily.
Superior Junction box: Multi function junction box with water proof capabilities.
Long lifespan: ≥ 25Years.
Tolerance: ±3%.
Good performance of preventing from atrocious weather such as wind and hails.
Resisting moisture and etching effectively, not effect by geology.
The certificate issued by international authority: CE, TUV, IEC.
Electrical characteristics
Pmax, Voc, Isc, Vmp and Imp at STC (1000W/m2, 25±2°C, AM 1.5);
Maximum Power (Pmax) 160W 165W 170W 175W 180W 185W
Open Circuit Voltage (Voc) 42.55V 42.59V 43.35V 43.39V 43.44V 43.47V
Short Circuit Current (Isc) 4.79A 4.92A 4.99A 5.12A 5.27A 5.4A
Maximum Power Voltage (Vmp) 35.51V 35.54V 36.18V 36.21V 36.25V 36.28V
Maximum Power Current (Imp) 4.51A 4.64A 4.7A 4.83A 4.97A 5.1A
Module Efficiency (%) 12.54 12.93 13.32 13.71 14.10 14.49
Temperature Coefficients
Temperature Coefficients of Pm -0.47 %/°C
Temperature Coefficients of Voc -0.38 %/°C
Temperature Coefficients of Isc +0.04 %/°C
Temperature Coefficients of Im +0.04 %/°C
Temperature Coefficients of Vm -0.38 %/°C
Absolute Maximum Limits
Maximum System Voltage 1000V DC
Module Operating Temperature -40°C to +85°C
Noct (DEGC.) 45°C±3°C
|
|
| |
|
|
|
